PXS Apertures available in 5 sizes (1/32″, 3/64″, 1/16″, 3/32″, and 1/8″).
Increase your apparent magnification by reducing your hole size. Select an aperture size that will fit tightly around the scope housing when looking through the peep at the scope while at full draw.
If you are using too large of an aperture, accuracy may suffer due to improper alignment of the scope and peep.
If you are using too small an aperture, you may lose some field of view of the scope lens and restrict the amount of light, making for a dim sight picture.

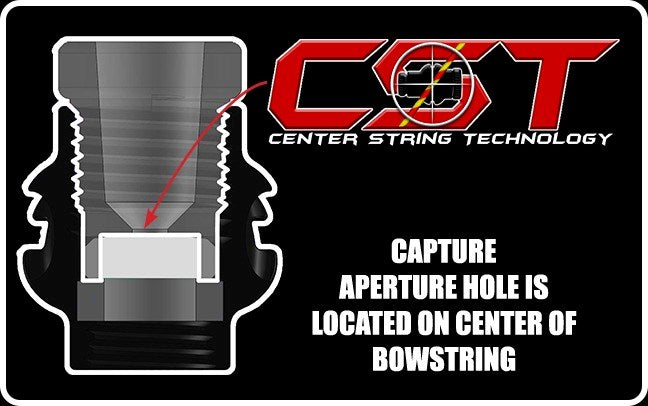

- CST – Center String Technology – PXS Capture Aperture located on center of bowstring – no L and R misses.

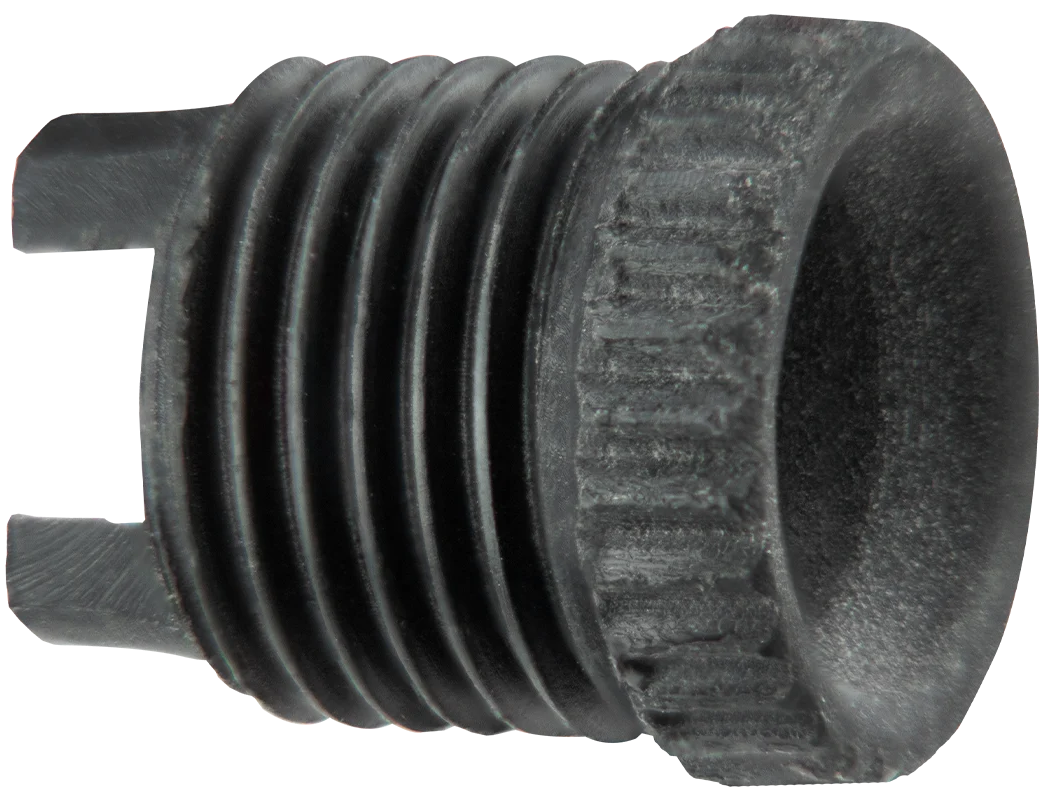

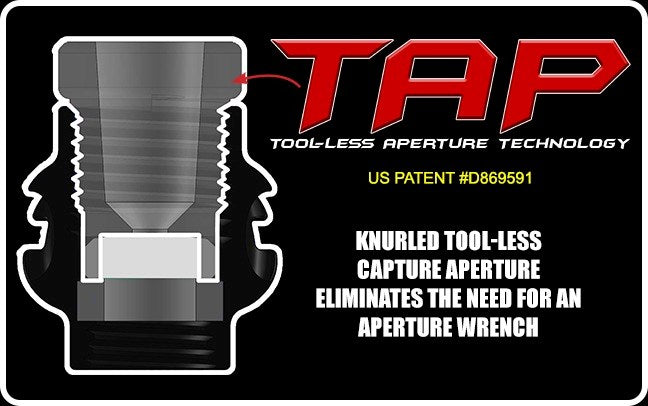

- TAP – Tool-less Aperture Technology – Knurled Tool-less PXS Capture Aperture – eliminates the need for an aperture wrench.
- PXS Clarifier or Verifier lenses can be removed from the Capture Aperture for easy cleaning.
- The optional Verifier lenses sharpen the pins.
- The optional Clarifiers when used with a scope and lens sharpen the target face.
- NOTE: for larger scopes you may also want to consider one of the PXL Hunter or Large Peep Housings.
Aperture options:
-
5 PXS Target Capture Apertures.
- #PXS125 1/8″ PXS Target Peep Capture Aperture.
- #PXS094 3/32″ PXS Target Peep Capture Aperture.
- #PXS063 1/16″ PXS Target Peep Capture Aperture.
- #PXS047 3/64″ PXS Target Peep Capture Aperture.
- #PXS031 1/32″ PXS Target Peep Capture Aperture.
-
NOTE:
- PXS Target Capture Apertures fit into Specialty Archery PXS Target Peeps ONLY.
- PXS Target Clarifiers, and PXS Target Verifiers fit into Specialty Archery PXS Target and SD Short Draw Peeps ONLY.
-
NOT compatible with other Specialty Archery peeps.
-

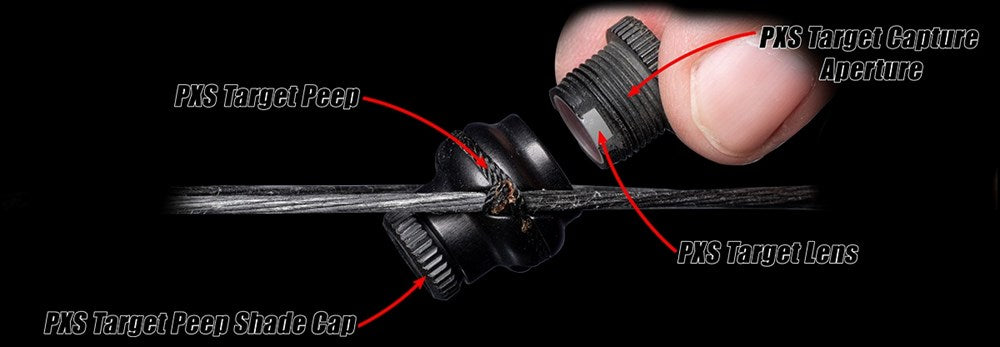

PXS Target Peep and component weights:
- PXS Target Peep – 18.0 grains
- PXS Target Peep Capture Aperture – 4.5 grains
- PXS Target Peep Clarifiers/Verifiers – 1.0 grains
- PXS Target Peep Shade Cap – 2.5 grains
On some bow setups the vibration can loosen Verifiers, Clarifiers and Apertures over time. Tighten your Apertures before each use. If you hear a buzzing sound, this indicates a loose Aperture. You may use a drop of bow wax, Vibra-Tite VC 3, Teflon tape, or any other non-permanent binding agent on the threads.
